Hearing through a vocoder

Motivation

The vocoder lets you vary one thing at a time that an implant user cannot: how many bands, how fast the envelopes may change, and what carries them. That is how its classic results were found:

• Few bands are enough for speech in quiet. Shannon et al. (1995) found that listeners understood most of the words in sentences through four noise bands, with no fine structure at all.
• Implant users get only a handful. Implants have 12 to 22 electrodes, but current spreads between neighbors. Friesen et al. (2001) found that most implant users did no better with more than about eight channels, while listeners hearing a vocoder kept improving up to about twenty, especially in noise.
• Pitch is what suffers most. With the fine structure gone, the only pitch cues left are which bands are loud and how fast the envelopes fluctuate. Music, intonation, and telling one voice from another all depend on pitch, and are hard for implant users.

The sentence, and code the examples share

The vocoder below splits the sound with half-cosine filters equally spaced on the ERB scale between 80 Hz and 7.6 kHz (just under the 8 kHz Nyquist frequency of this 16 kHz recording), neighbors overlapping by half, takes each band's Hilbert envelope, lowpasses it at 50 Hz unless stated, and multiplies it into the same band of fresh Gaussian noise. The output has the input's RMS.

import matplotlib.pyplot as plt
import numpy as np

import sonore as so

plt.rcParams.update({"font.size": 9, "axes.titlesize": 10, "figure.dpi": 100})


def finish(snd):
    """How every sound in the gallery is played: 5 ms ramps, RMS 0.1, peak at most 0.95."""
    snd = snd.ramp(5e-3).normalize(rms=0.1)
    return snd.normalize(peak=0.95) if snd.peak > 0.95 else snd


# The sentence at its native 16 kHz. Sources: docs/speech/SOURCES.md.
sentence = finish(so.load("docs/speech/bdl_arctic_a0131.flac"))
fs = sentence.fs
F_LO, F_HI = 80, 7600

# Every spectrogram: a wideband STFT (Hann 5 ms), dB re its own maximum over 60 dB, 0 to 8 kHz.
wide = so.GaborFrame(0.005, 0.001, n_fft=1024)
FMAX, DB = 8000, 60


def bands(snd, n_bands, env_lowpass=50.0):
    """The envelopes the vocoder keeps: ERB bands, Hilbert envelopes, lowpassed."""
    fb = so.cosine_filterbank(n_bands, F_LO, F_HI)
    return fb.analyze(snd).envelopes(lowpass=env_lowpass, fs=1000)


def show(snd, envelopes=None, title=""):
    """Waveform, spectrogram and (if given) the band envelopes, on one time axis.
    Returns the figure and the panels the playhead follows."""
    n = 3 if envelopes is not None else 2
    fig = plt.figure(figsize=(10, 2.0 + 2.2 * (n - 1)), layout="constrained")
    axes = fig.subplots(n, 1, sharex=True, height_ratios=[0.55] + [1] * (n - 1))
    snd.plot(axes[0], color="k", lw=0.4)
    axes[0].set_title(f"Waveform{': ' + title if title else ''}")
    wide.analyze(snd).plot(axes[1], db_range=DB, colorbar=False, fmax=FMAX)
    axes[1].set_title("Spectrogram (Hann 5 ms)")
    if envelopes is not None:
        envelopes.plot(axes[2], db_range=DB, colorbar=False, fscale="linear", fmax=FMAX)
        axes[2].set_title(f"The {envelopes.data.shape[1] - 2} band envelopes the vocoder keeps")
    for ax in axes:
        ax.set_xlim(0, snd.duration)
        ax.set_xlabel("")
    axes[-1].set_xlabel("Time [s]")
    return fig, list(axes)

How many bands

Each band gives the listener one envelope: when there is energy in that region of the spectrum, but not what it is made of. Fewer bands mean a coarser picture of the spectrum, so formants that fall in the same band can no longer be told apart.

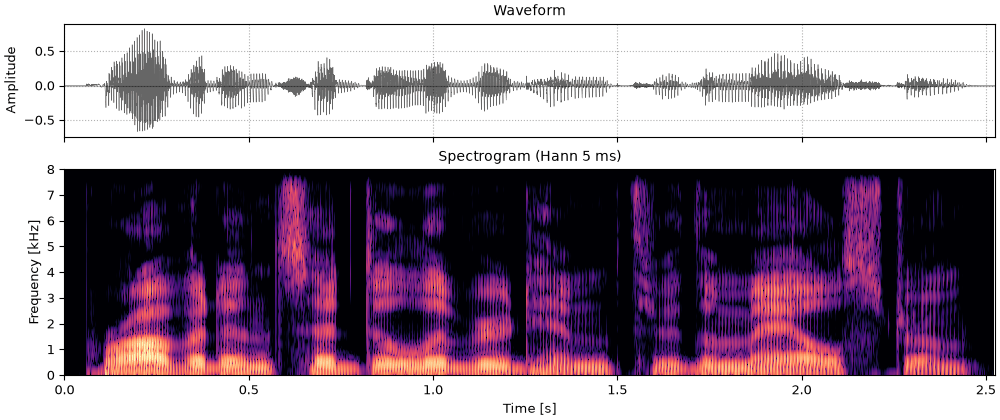

The original sentence

The original, for comparison.

ci0_the_original_sentence.flac, 2.5 s, mono

Code

fig, playhead = show(sentence)
sound = sentence

One band

One band: the envelope of the whole sentence on a single noise. The rhythm and syllables are there; the words are not.

ci1_one_band.flac, 2.5 s, mono

Code

vocoded = finish(so.noise_vocode(sentence, 1, F_LO, F_HI, rng=1))
fig, playhead = show(vocoded, bands(sentence, 1), "one band")
sound = vocoded

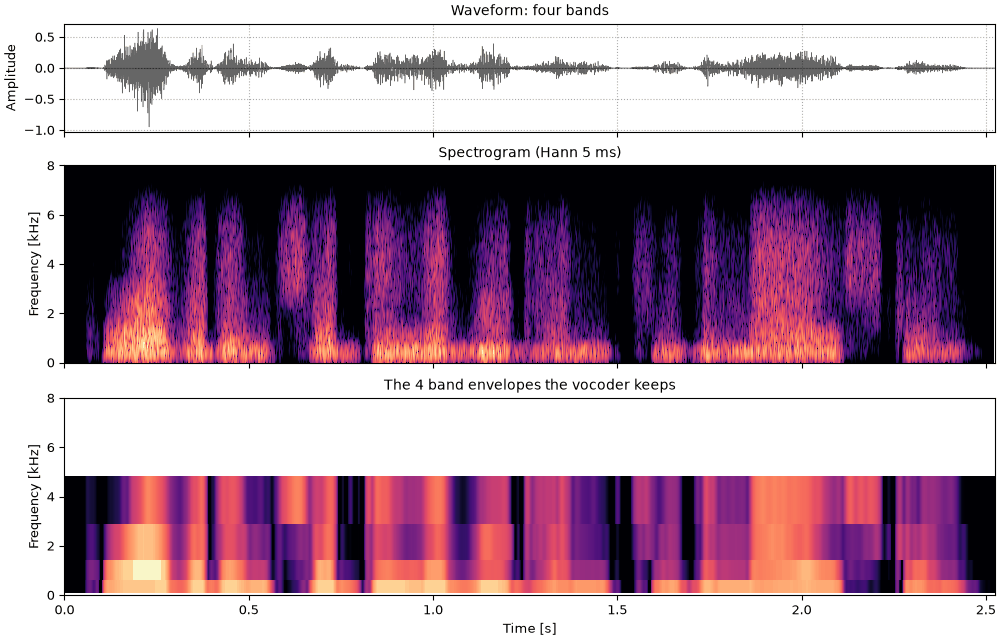

Four bands

Four bands, about where Shannon et al. (1995) found listeners began to understand most words in quiet. The spectrogram shows four broad blocks, switching on and off with the syllables.

ci4_four_bands.flac, 2.5 s, mono

Code

vocoded = finish(so.noise_vocode(sentence, 4, F_LO, F_HI, rng=4))
fig, playhead = show(vocoded, bands(sentence, 4), "four bands")
sound = vocoded

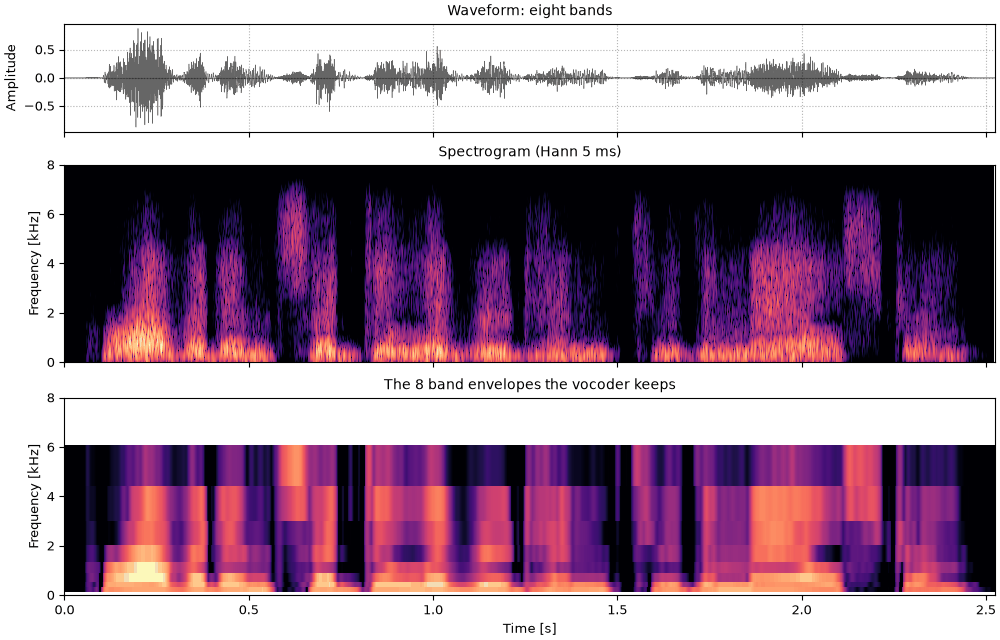

Eight bands

Eight bands, about as many as most implant users can use. The formant movements are now visible as energy moving from band to band.

ci8_eight_bands.flac, 2.5 s, mono

Code

vocoded = finish(so.noise_vocode(sentence, 8, F_LO, F_HI, rng=8))
fig, playhead = show(vocoded, bands(sentence, 8), "eight bands")
sound = vocoded

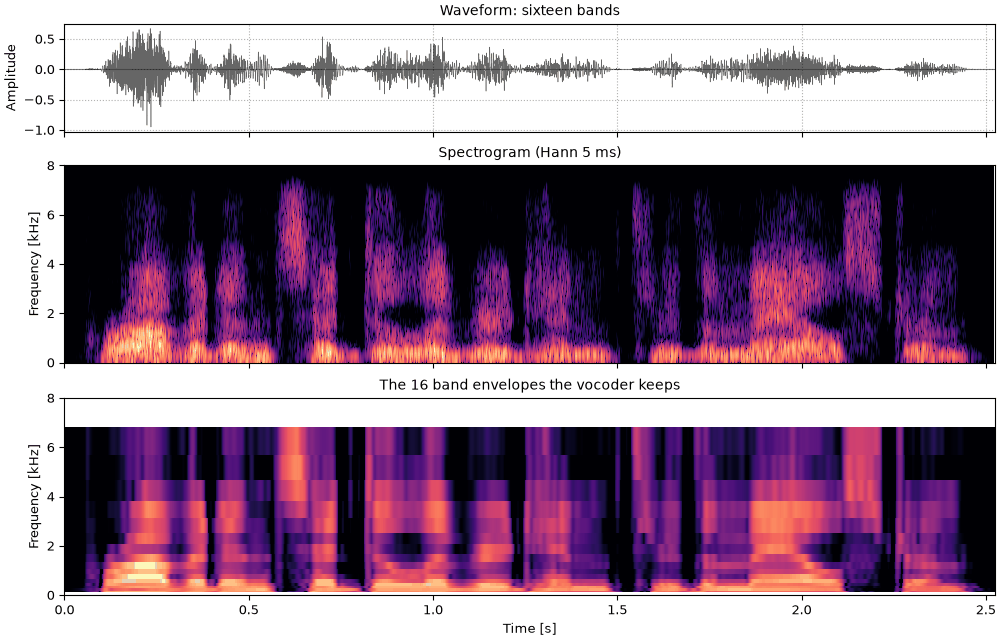

Sixteen bands

Sixteen bands. The words are easy, but the voice is still a whisper: no band of noise has a pitch, so the talker's intonation is gone.

ci16_sixteen_bands.flac, 2.5 s, mono

Code

vocoded = finish(so.noise_vocode(sentence, 16, F_LO, F_HI, rng=16))
fig, playhead = show(vocoded, bands(sentence, 16), "sixteen bands")
sound = vocoded

Noise or tones

The carrier is the vocoder's stand-in for the electrode, and noise is only one choice. A tone vocoder puts a sinusoid at each band's center instead. The envelopes are the same, but a tone has no envelope fluctuations of its own to blur them, so fast modulations survive better, and the result sounds more like a buzzy voice than a whisper. With few bands, the tones are heard as separate pitches. Speech through either is about equally intelligible (Dorman et al., 1997).

Eight tones

The sentence through eight tones, at the same eight band centers as the noise vocoder above.

ct8_eight_tones.flac, 2.5 s, mono

Code

vocoded = finish(so.noise_vocode(sentence, 8, F_LO, F_HI, carrier="tone"))
fig, playhead = show(vocoded, bands(sentence, 8), "eight tones")
sound = vocoded

Pitch from the envelope

The vocoder's envelope lowpass decides how fast an envelope may change. At 50 Hz it keeps the syllables and the formant movements but not the voice's periodicity. Raise it above the fundamental, here about 90 to 190 Hz, and each band's envelope pulses once per glottal period: a temporal pitch cue, the kind implant users rely on. It is weak and works only for low pitches, a few hundred hertz at most.

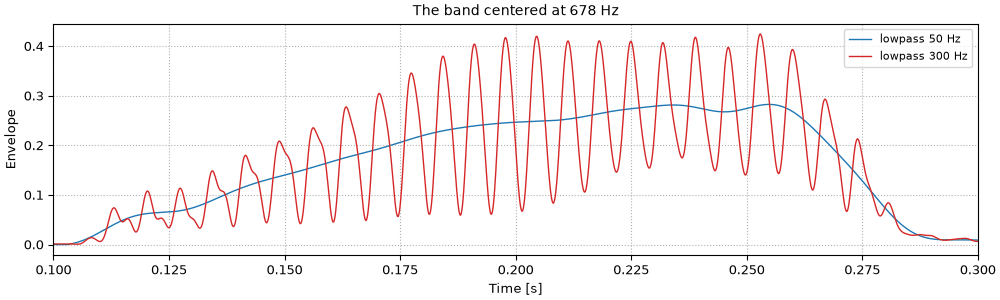

One envelope, two cutoffs

One band's envelope over a stretch of voiced speech, lowpassed at 50 Hz and at 300 Hz. Only the 300 Hz envelope follows the glottal pulses.

Code

fb = so.cosine_filterbank(8, F_LO, F_HI)
sub = fb.analyze(sentence)
band = int(np.argmin(np.abs(fb.cfs - 700)))  # the band nearest 700 Hz
fig, ax = plt.subplots(figsize=(10, 3.0), layout="constrained")
for cutoff, color in ((50, "tab:blue"), (300, "tab:red")):
    env = sub.envelopes(lowpass=cutoff)
    ax.plot(env.t, env.data[:, band, 0], color=color, lw=1, label=f"lowpass {cutoff} Hz")
ax.set(
    xlim=(0.1, 0.3),
    xlabel="Time [s]",
    ylabel="Envelope",
    title=f"The band centered at {fb.cfs[band]:.0f} Hz",
)
ax.legend(loc="upper right", fontsize=8)
ax.grid(ls=":")

Eight bands, 300 Hz envelopes

Eight bands with envelopes lowpassed at 300 Hz instead of 50 Hz. Listen for the intonation, faint but back. The wideband spectrogram shows the pulses as vertical striations again.

cp8_eight_bands_300_hz_envelopes.flac, 2.5 s, mono

Code

vocoded = finish(so.noise_vocode(sentence, 8, F_LO, F_HI, env_lowpass=300, rng=8))
fig, playhead = show(vocoded, bands(sentence, 8, env_lowpass=300), "eight bands, 300 Hz envelopes")
sound = vocoded

A higher voice

The same sentence read by a female talker (slt). The female fundamental, about 150 to 230 Hz here by so.f0_track, is higher than the male talker's, so a temporal cue has to follow faster pulses.

sentence_female = finish(so.load("docs/speech/slt_arctic_a0131.flac"))
track_female = so.f0_track(sentence_female)
print(f"female F0: {track_female}")

female F0: F0Track(528 time windows, 1 ch, 68% voiced, F0 148-227 Hz)

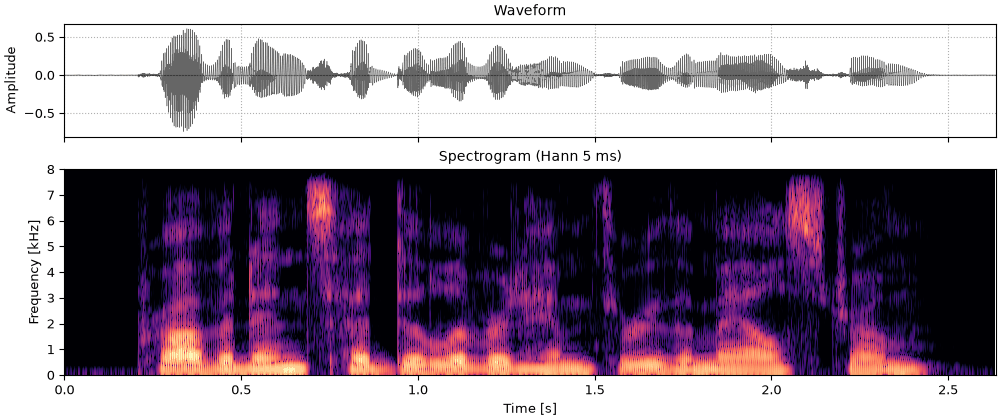

Female talker

The female talker's sentence as recorded.

cf0_female_talker.flac, 2.6 s, mono

Code

fig, playhead = show(sentence_female)
sound = sentence_female

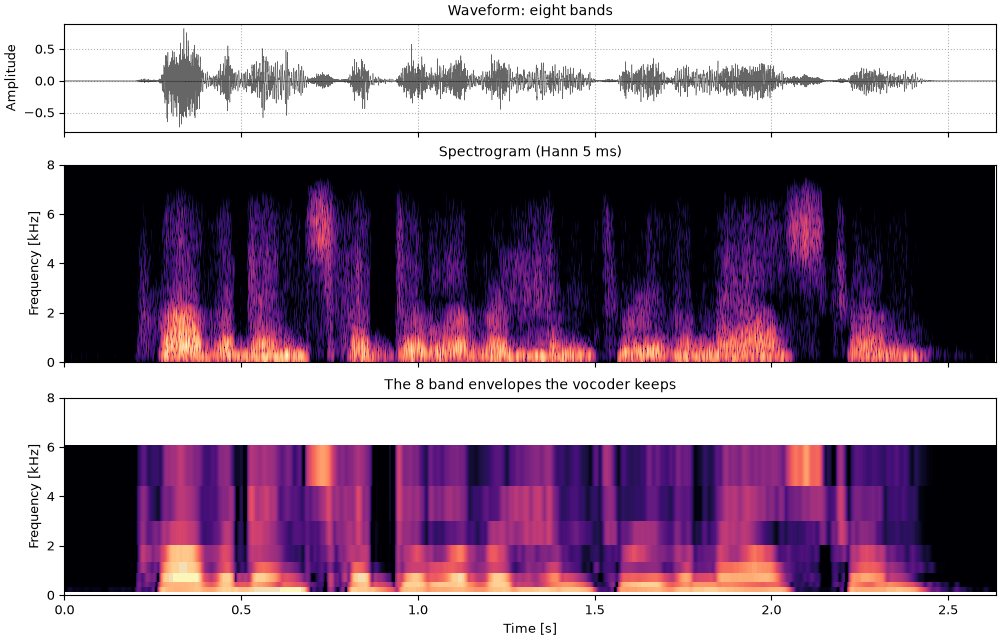

Female talker, eight bands

Through eight noise bands with 50 Hz envelopes. As with the male talker's sentence, the words come through and the intonation does not; with the pitch gone, the main difference left between the two vocoded voices is where their formants sit.

cf8_female_talker_eight_bands.flac, 2.6 s, mono

Code

vocoded = finish(so.noise_vocode(sentence_female, 8, F_LO, F_HI, rng=8))
fig, playhead = show(vocoded, bands(sentence_female, 8), "eight bands")
sound = vocoded

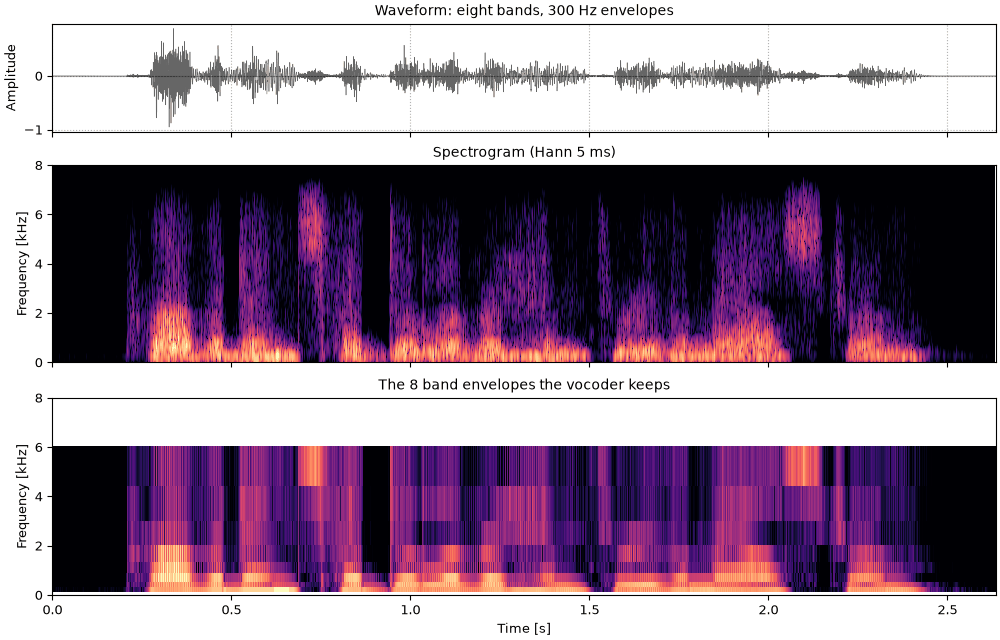

Female talker, eight bands, 300 Hz envelopes

Eight bands with 300 Hz envelopes. The female fundamental is still below the cutoff, so the envelopes pulse with it, as the male talker's do. Listen for the intonation, and compare it with the male talker's above.

cf8p_female_talker_eight_bands_300_hz_envelopes.flac, 2.6 s, mono

Code

vocoded = finish(so.noise_vocode(sentence_female, 8, F_LO, F_HI, env_lowpass=300, rng=8))
fig, playhead = show(vocoded, bands(sentence_female, 8, env_lowpass=300), "eight bands, 300 Hz envelopes")
sound = vocoded

A melody

Speech can be understood without pitch; a melody cannot. The opening of "Twinkle, Twinkle, Little Star" in harmonic complex tones, low in the bass clef so that the fundamentals are in reach of a temporal cue.

notes = [131, 131, 196, 196, 220, 220, 196]  # C3 C3 G3 G3 A3 A3 G3 [Hz]
durs = [0.4, 0.4, 0.4, 0.4, 0.4, 0.4, 0.8]
tones = [
    so.harmonic_complex(d, fs, f, np.arange(1, 21)).ramp(20e-3) for f, d in zip(notes, durs, strict=True)
]
melody = finish(so.concat(tones))

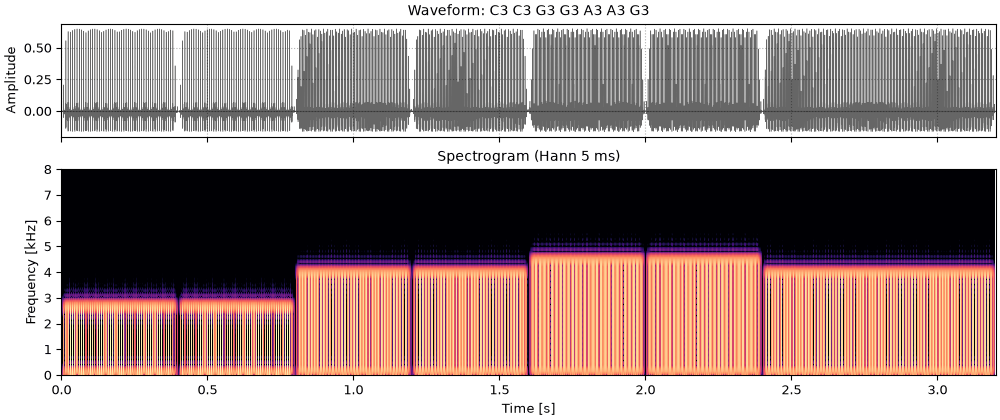

The melody

The melody as played.

cm0_the_melody.flac, 3.2 s, mono

Code

fig, playhead = show(melody, title="C3 C3 G3 G3 A3 A3 G3")
sound = melody

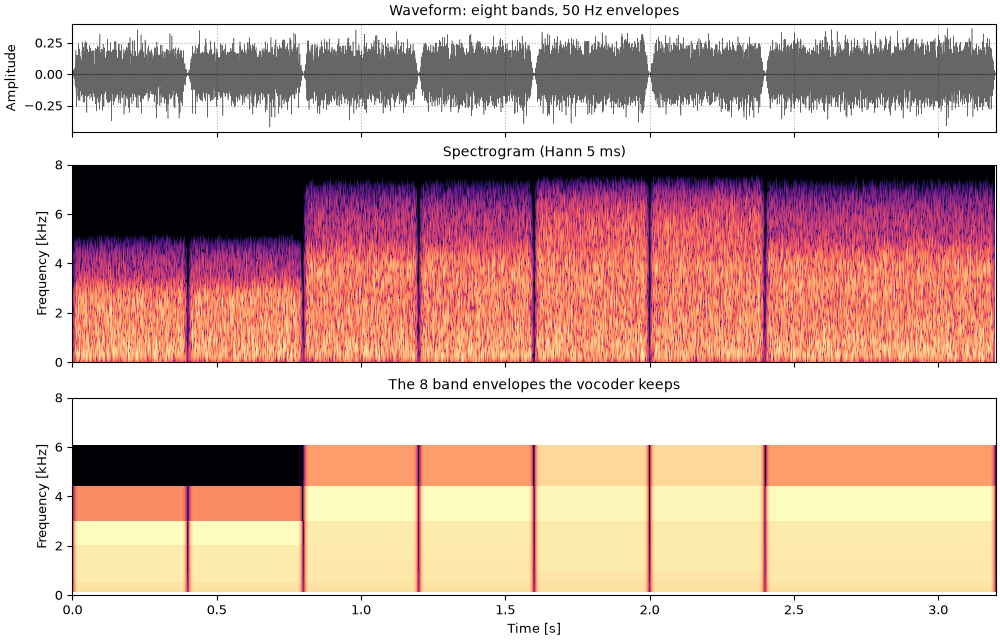

Eight bands, 50 Hz envelopes

Through eight noise bands with 50 Hz envelopes. Each note changes which bands are loud only a little, and the tune is close to gone.

cm8_eight_bands_50_hz_envelopes.flac, 3.2 s, mono

Code

vocoded = finish(so.noise_vocode(melody, 8, F_LO, F_HI, rng=8))
fig, playhead = show(vocoded, bands(melody, 8), "eight bands, 50 Hz envelopes")
sound = vocoded

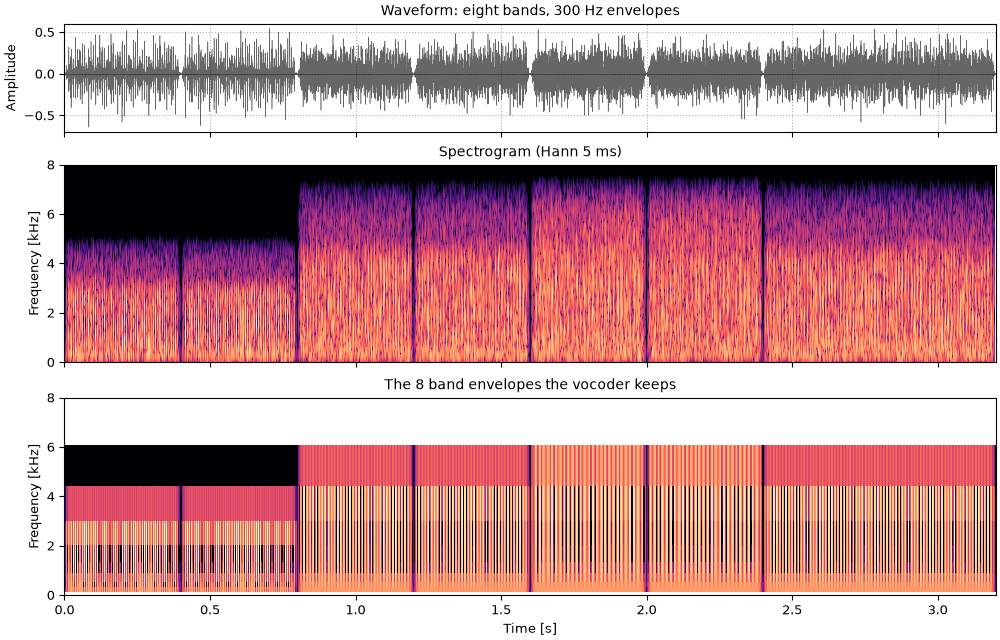

Eight bands, 300 Hz envelopes

The same with 300 Hz envelopes: every band now pulses at the note's fundamental, and the tune comes back as a rough, buzzy pitch.

cm8p_eight_bands_300_hz_envelopes.flac, 3.2 s, mono

Code

vocoded = finish(so.noise_vocode(melody, 8, F_LO, F_HI, env_lowpass=300, rng=8))
fig, playhead = show(vocoded, bands(melody, 8, env_lowpass=300), "eight bands, 300 Hz envelopes")
sound = vocoded

What this simulation leaves out

A vocoder shows what is lost when only band envelopes are kept. It is not a model of any one implant user, and several things that matter for real implants are not on this page:

• Current spread. Neighboring electrodes excite overlapping nerve fibers, so the useful number of channels is smaller than the number of electrodes. Vocoders model it with wider, shallower synthesis filters than analysis filters; here both are the same.
• Insertion depth. An electrode array does not reach the apex of the cochlea, so each band is delivered to a place tuned higher than the band itself, a frequency shift. Here every carrier band sits where its envelope came from.
• Dynamic range and pulses. Electric hearing has a much narrower dynamic range, so the processor compresses the envelopes, and it delivers them as pulse trains at a fixed rate.

References

• Dorman, Loizou & Rainey (1997). Speech intelligibility as a function of the number of channels of stimulation for signal processors using sine-wave and noise-band outputs. J. Acoust. Soc. Am. 102(4), 2403–2411. doi:10.1121/1.420354. envelopes.noise_vocode
• Friesen, Shannon, Baskent & Wang (2001). Speech recognition in noise as a function of the number of spectral channels: comparison of acoustic hearing and cochlear implants. J. Acoust. Soc. Am. 110(2), 1150–1163. PubMed. envelopes.noise_vocode
• Kominek & Black (2004). The CMU Arctic speech databases. Proc. 5th ISCA Speech Synthesis Workshop, 223–224. ISCA Archive. The sentence, by speakers bdl and slt.
• Shannon, Zeng, Kamath, Wygonski & Ekelid (1995). Speech recognition with primarily temporal cues. Science 270(5234), 303–304. doi:10.1126/science.270.5234.303. envelopes.noise_vocode
• Wilson, Finley, Lawson, Wolford, Eddington & Rabinowitz (1991). Better speech recognition with cochlear implants. Nature 352, 236–238. PubMed. envelopes.noise_vocode
